SKI TOWER BIMINIS • WakeTower Biminis

Ski / Wake Tower Bimini Tops

Measuring Points for Tower Bimini

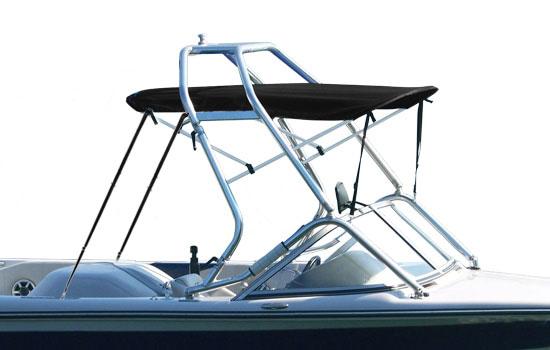

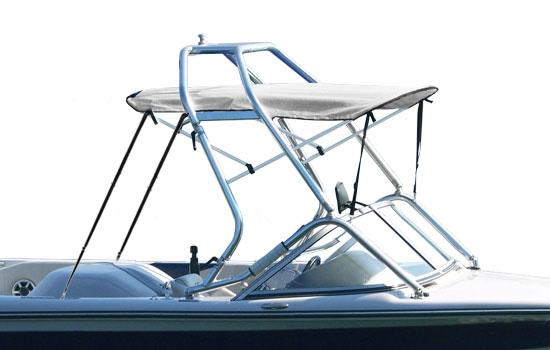

These Bimini Tops are designed to mount within the confines of most wake board and ski towers to provide shade for the driver and spotter. All tops are 48" long and approximately 16" high (from mounting point) and are available in three different widths to fit most towers. Frame is constructed with bright dip anodized aluminum tubing using high quality marine grade hardware. The top features Ultima(TM) fabric for the best performance in strength, UV stability and longevity. It is available in 8 popular colors (Black, Blue, Cranberry, Green, Charcoal, Navy, Teal, White Vinyl).

Bimini Top Mounting

The tops will mount directly onto the tower frame at the center point, so pick the best position on the tower that will provide the most shade to the driver's seat. The tops are low profile with approximately a maximum height of 16", so be sure that the position will keep the top high enough to clear the driver and spotter when seated. Measure across the tower at the mounting point that has been selected and choose the dimensions from the chart, noting the bimini width that matches your measured width on the tower. Check the width at the top and be sure that the angle of your tower will accommodate that dimension.

Ski Tower Bimini Features:

o Industry's Best 5 Year Warranty
o 48" Long x 16" High, and various sizes fit 68"- 84" Wide
o Designed Exclusively for Ski/Wake Towers
o Bright Dip Anodized Aluminum Tubing
o Ultima UV Resistant Fabric
o Available in 8 Colors

Measuring Points for Tower Bimini

Width at Mount.....Width at Top

68"-71"................60"

81"-84"................73"
